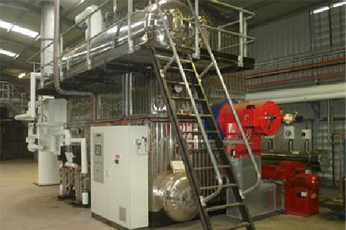

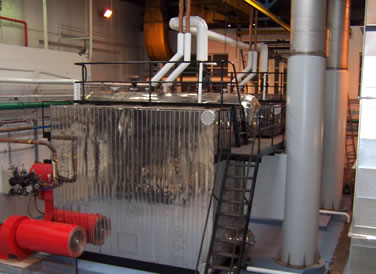

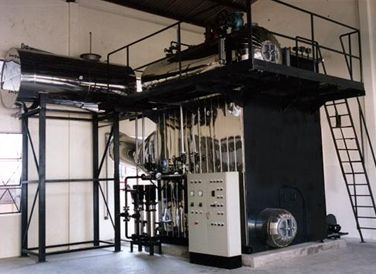

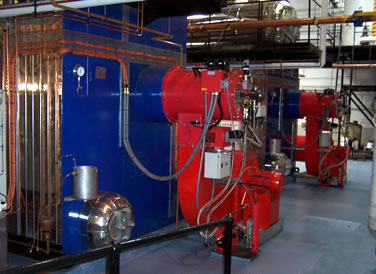

D Type Package Steam Boilers

Thermic can provide Water Tube Steam Boilers with a boilers in the range of 2MW - 35MW.

Click here for TECHNICAL INFORMATION

Please contact Thermic for further technical information.



TECHNICAL DATA

1) Concrete plinth
2) Water drum
3) Mandoor
4) Header
5) Pressure relay
6) Pressure gauge
7) Steam piping into pressure gauge
8) Water level gauge
9) Feed water piping system
10) Feed water pump
11) Blowdown piping system
12) Electrical control cabinet
13) Burner
14) Ladder
15) Flatform
16) Steam Drum
17) Level Float
18) Steam out
19) Safety Valve
20) Auxiliary steam out
21) Ventilating valve
22) Steam piping into feed water tank
23) High level control probe
24) Flue exhaust







Model W150 W200 W300 W400 W500 W600
Capacity MW 1.5 2.0 3.0 4.0 5.0 6.0
Horsepower 150 200 300 400 500 600
Evaporation Kg/Hr f & a 100 0 C 2300 3000 4600 6000 7500 9000
L.P.G. Lt/Hour 250 340 506 685 850 1013
Diesel Oil Lt/Hour 141 192 286 387 481 573
Heating Surface (sq m) 42 56 84 112 141 168
Main Steam Outlet 65 80 80 100 150 150
Feedwater Inlet 25 32 40 40 40 40
Safety Valve 25 25 40 50 50 65
Blowdown Valve 40 40 40 40 40 40
Flue Diameter (mm) 350 400 450 500 600 800
DIMENSION(MM)
Overall Height C 4110 4110 4110 4110 4110 4110
Overall Width A 2890 2890 2890 2890 2890 2890
Overall Length B 2600 2870 3000 3450 4400 6100
